How To Set Up A Toggle Switch?

Views: 1     Author: Site Editor     Publish Time: 2023-10-14      Origin: Site

Hello there! Setting up a toggle switch can seem tricky at first, but with the right guidance, it's a breeze. Whether you're a DIY enthusiast or trying this for the first time, understanding the steps is key. A toggle switch offers control over various devices, making it a handy addition to many projects. In this guide, we'll walk you through the setup process, step by step. With a touch of patience and these easy-to-follow instructions, you'll master the art of toggle switch installation in no time. Let's start and get that switch set up!

What is a toggle switch?

A toggle switch is a simple device. It controls the flow of electricity. You've likely seen one before. They have two positions: on and off. When you flip the switch one way, it's "on." Flip it the opposite way, and it's "off." Think of a light switch in your home. That's a common example of a toggle switch. They come in various sizes and designs. Some have a lever, while others use a rocker. They're essential for many electronic devices. With them, you can easily control power.

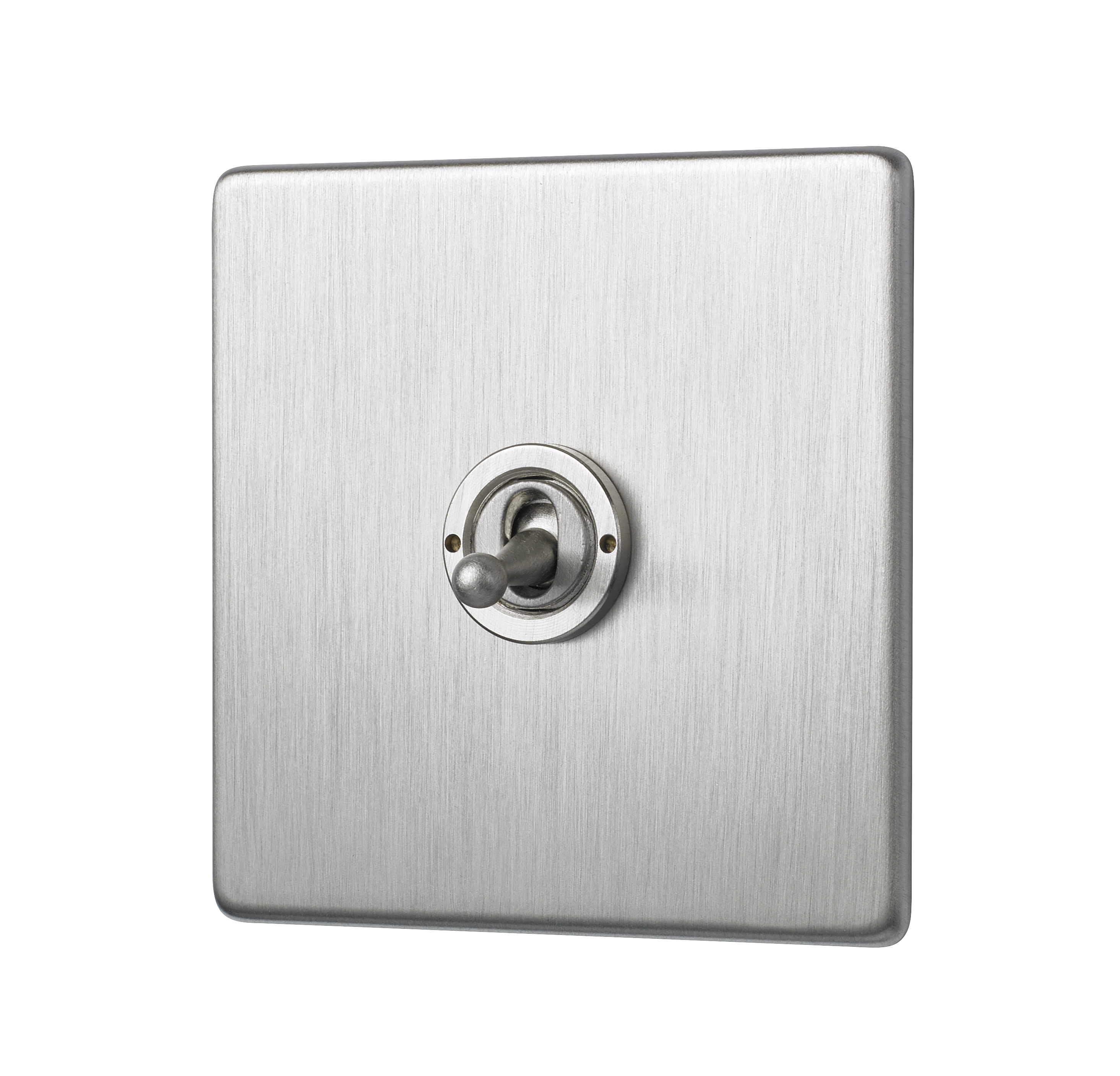

how to set up a toggle switch

How to toggle switch work?

At its core, a toggle switch controls an electrical circuit. It determines whether the current flows or stops. Think of it as a bridge. When the bridge is down, cars (or electricity) can move. When it's up, they can't.

Inside the switch, there are contacts. These are small pieces of conductive material. When the switch is in the "on" position, these contacts meet. This creates a path for the electricity. It's like connecting two ends of a wire.

But what happens when you flip it to the "off" position? The contacts are separate. This breaks the circuit. Electricity can't flow anymore. It's like cutting that wire in half.

Now, let's picture a simple light bulb setup. You have a battery, a light bulb, and a toggle switch. The battery provides power, and the light bulb is what you want to light up. The toggle switch stands in between them.

When the switch is "on", it connects the battery to the bulb. The light shines bright! But when you flip the switch "off", the connection breaks. The bulb goes dark because no power reaches it.

Toggle switches can also have more than two positions. These allow for more control options. For instance, a three-way toggle might have "low", "medium", and "high" settings.

But no matter how many positions they have, the principle remains the same. They either connect or disconnect the circuit. And that's the magic behind them!

In daily life, you'll find these switches everywhere. They're in toys, machines, and household items. Next time you use one, you'll know the science behind that simple flick!

How to set up a toggle switch?

Setting up a toggle switch is simpler than you might think. Let’s see it step by step. Remember, always stay safe when working with any electrical component!

1. Gather Your Materials

Before you start, gather these items:

  • A toggle switch

  • A screwdriver

  • Wire strippers

  • Electrical tape or heat shrink tubing

  • Wire connectors (optional)

2. Turn Off Power

Safety first! Always disconnect power before working on any circuit. Unplug the device or turn off the circuit breaker.

3. Choose a Location

Decide where you want your switch. It should be easy to reach and clear of obstructions.

4. Prepare Wires

Using wire strippers, strip about half an inch of insulation from the ends of your wires. This exposes the metal core, making it ready to connect.

5. Identify the Terminals

Look at the back of your toggle switch. You'll see terminals, usually marked as "power" or "load". Some switches might also have a "ground" terminal.

6. Connect the Power Wire

Attach the wire coming from your power source to the "power" terminal. Secure it firmly. Some switches require you to push the wire into a hole. Others might need you to wrap the wire around a screw and then tighten it with a screwdriver.

7. Connect the Load Wire

The "load" terminal is next. Attach the wire going to your device or appliance here, just like you did with the power wire.

8. Grounding (if needed)

If your switch has a ground terminal, connect it to the ground wire. Grounding is crucial for safety.

9. Insulate Connections

Use electrical tape or heat shrink tubing to cover your wire connections. This prevents accidental shorts and keeps things neat.

10. Secure the Switch

Once your wires are connected, place the switch into its final position. Secure it using the provided screws or clips. If it's a panel mount switch, make sure it fits snugly.

11. Turn On Power

Reconnect the power. Either plug your device back in or turn on the circuit breaker.

12. Test Your Switch

Flip the toggle switch to the "on" position. Your device should power on. Flip it to the "off" position and your device should power off. If everything works, congratulations!

13. Troubleshooting

If the switch doesn't work:

  • Double-check your connections.

  • Make sure you've connected to the right terminals.

  • Ensure there's power to the circuit.

See, setting up a toggle switch isn't too hard! With the right tools and a bit of patience, you can do it. Always remember, that safety comes first. If you're ever unsure about something, seek help or hire a professional. Now, enjoy your newly set up toggle switch and the control it offers!

Keep it in mind when setting up a toggle switch

Setting up a toggle switch? Great choice! Here are some things to keep in mind.

Safety First!: Always disconnect the power before you start. Electricity can hurt you, so never take risks. Wear protective gloves if you have them.

Right Switch for the Right Job: Different devices need different switches. Make sure your toggle switch matches your device's specifications.

Location Matters: Place your switch in a spot that's easy to reach. You don't want to stretch or strain every time you use it.

Wiring Color Codes: Most wires have colors to indicate their function. Usually, black or red means power. White or blue indicates neutral. Green stands for ground. Always double-check!

Secure Connections: Loose wires can lead to poor performance or safety hazards. Ensure every wire connection is tight and secure.

Use the Right Tools: Wire strippers make stripping wires easier. Screwdrivers should fit screw heads perfectly. Using the right tools makes the job smoother.

Check Your Work: Before reconnecting power, double-check all your connections. This step can save you from potential problems later.

Don’t Force It: If a terminal doesn't accept a wire easily, don't force it. You might damage the switch or wire.

Keep it Dry: Most toggle switches aren't waterproof. Keep them away from places where water or moisture can get in.

Understand Your Switch: Some switches have more than just “on” and “off” positions. Understand the functions of your particular switch before setting it up.

Label Your Switch: If you have multiple switches, labels help. They'll remind you (or anyone else) what each switch controls.

Ask for Help if Unsure: No shame in asking! If you're unsure about something, consult a friend or hire a professional.

Remember, setting up a toggle switch is both fun and practical. By keeping these points in mind, you'll ensure a safe and effective setup. Enjoy your new switch and the convenience it brings!

how to set up a toggle switch


What is a toggle switch used for?

A toggle switch lets you control the flow of electrical current in a circuit. You can easily turn devices on or off with it.

How do I know if my toggle switch is on or off?

Most toggle switches have a clear "on" and "off" position. When the lever points up or towards you, it's usually "on". If it's down or away, it's "off".

Can I use any toggle switch for any device?

Not always. Toggle switches come with different ratings. Always match the switch's specifications with your device's requirements.

Do all toggle switches need grounding?

It's best to ground toggle switches for safety. Some switches have a specific ground terminal. Always follow the manufacturer's guidelines.
